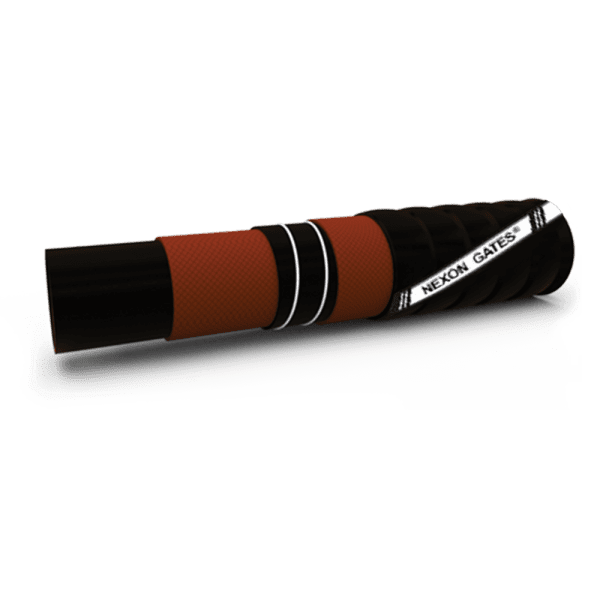

XTREME SD20

Description

SPECIFICATION

APPLICATION

CONSTRUCTION

PRODUCT CODE	Inner Diameter		Outer Diameter	Working Pressure		Min Bend Radius	Standard Pack Length
	inch	mm	mm	PSI	Bar	mm	meter
XTREME-SD20-12	3/4	19	29	300	20	110	60
XTREME-SD20-16	1	25	36	300	20	145	60
XTREME-SD20-20	1 1/4	32	43	300	20	185	60
XTREME-SD20-24	1 1/2	38	50	300	20	235	60
XTREME-SD10-32	2	51	64	300	20	290	60
XTREME-SD10-40	2 1/2	64	76	300	20	360	60
XTREME-SD10-48	3	76	92	300	20	450	60
XTREME-SD10-64	4	102	120	300	20	580	60
XTREME-SD10-80	5	127	149	300	20	750	60
XTREME-SD10-96	6	152	171	300	20	880	60
XTREME-SD20-128	8	203	225	300	20	1200	30
XTREME-SD20-160	10	254	286	300	20	1500	12
XTREME-SD20-192	12	305	337	300	20	1900	12

Heavy duty oilfield operation. Design for multiple operation, petroleum, fuel, oil, oil based drilling mud, drill water, bulk material and mild chemical.

Tube: NBR, black, smooth.
Reinforcement: Two plies high tensile synthetic cord. Steel helical wire to withstand vacuum.
Cover: Black, special compounded synthetic rubber, ozone, abrasion, weather resistant.
Temperature: -40°C to 100°C
Aromatic Content: 50%
