Description
SPECIFICATION
APPLICATION
CONSTRUCTION
| PRODUCT CODE |  Inner Diameter |
 Outer Diameter |
 Working Pressure |
 Min Bend Radius |
Standard Pack Length | |||||
| inch | mm | mm | PSI | Bar | mm | meter | ||||
| NGUPW4000-4 | 1/4 | 6.35 | 12.5 | 4000 | 276 | 50 | 100 | |||
| NGUPW4000-5 | 5/16 | 7.94 | 16.3 | 4000 | 276 | 55 | 100 | |||
| NGUPW4000-6 | 3/8 | 9.53 | 18.0 | 4000 | 276 | 65 | 100 | |||
| NGUPW4000-8 | 1/2 | 12.70 | 22.60 | 4000 | 276 | 90 | 100 | |||
| NGUPW4000-10 | 5/8 | 15.88 | 27.50 | 4000 | 276 | 100 | 60 | |||
| NGUPW4000-12 | 3/4 | 19.05 | 32.50 | 4000 | 276 | 120 | 60 | |||
For water blasting, design to clean industrial surface, water pressure up to 4000PSI

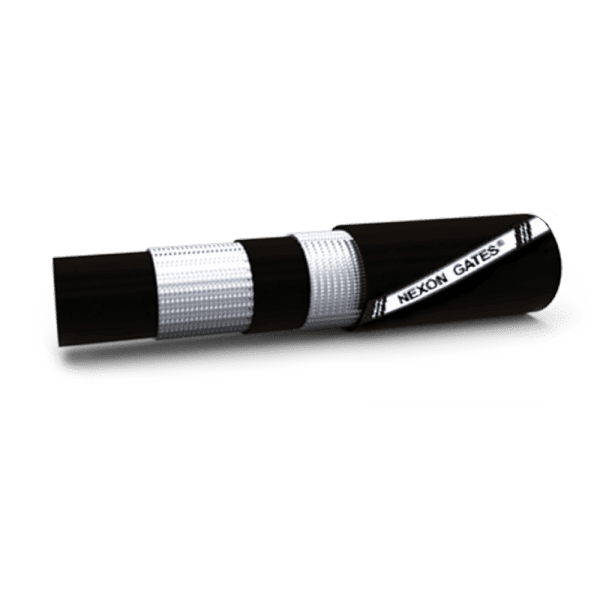

Tube: EPDM synthetic rubber
Reinforcement: Two plies high tensile braided wire.
Cover: Black,synthetic rubber, oil, environment, abrasion resistant.
Temperature: -40°C to 100°C
Reinforcement: Two plies high tensile braided wire.
Cover: Black,synthetic rubber, oil, environment, abrasion resistant.
Temperature: -40°C to 100°C
