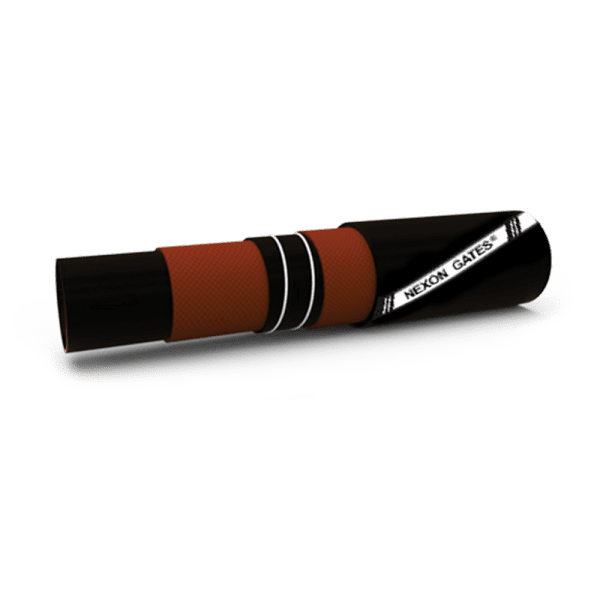

NGFUEL D10-AS

Description

SPECIFICATION

APPLICATION

CONSTRUCTION

PRODUCT CODE	Inner Diameter		Outer Diameter	Working Pressure		Min Bend Radius	Standard Pack Length
	inch	mm	mm	PSI	Bar	mm	meter
NGFUEL-D10-AS-12	3/4	19	29	150	10	110	60
NGFUEL-D10-AS-16	1	25	35	150	10	140	60
NGFUEL-D10-AS-20	1 1/4	32	42	150	10	190	60
NGFUEL-D10-AS-24	1 1/2	38	49	150	10	230	60
NGFUEL-D10-AS-32	2	51	63	150	10	280	60
NGFUEL-D10-AS-40	2 1/2	64	76	150	10	340	60
NGFUEL-D10-AS-48	3	76	89	150	10	430	60
NGFUEL-D10-AS-64	4	102	117	150	10	590	60
NGFUEL-D10-AS-80	5	127	143	150	10	790	60
NGFUEL-D10-AS-96	6	152	170	150	10	910	60
NGFUEL-D10-AS-128	8	203	225	150	10	1230	30
NGFUEL-D10-AS-160	10	254	282	150	10	1530	12
NGFUEL-D10-AS-192	12	305	323	150	10	1900	12

Tank truck operation for petroleum and oil suction and discharge. Aromatic content up to 50%

Tube: NBR, black, smooth.
Reinforcement: One to two plies high tensile synthetic yarn. Helical wire for vacuum application. Embedded antistatic wire under cover for grounding purpose.
Cover: Black, synthetic rubber, ozone, abrasion, weather resistant.
Temperature: -40°C to 80°C
Aromatic Content: 50%
