Description
SPECIFICATION
APPLICATION

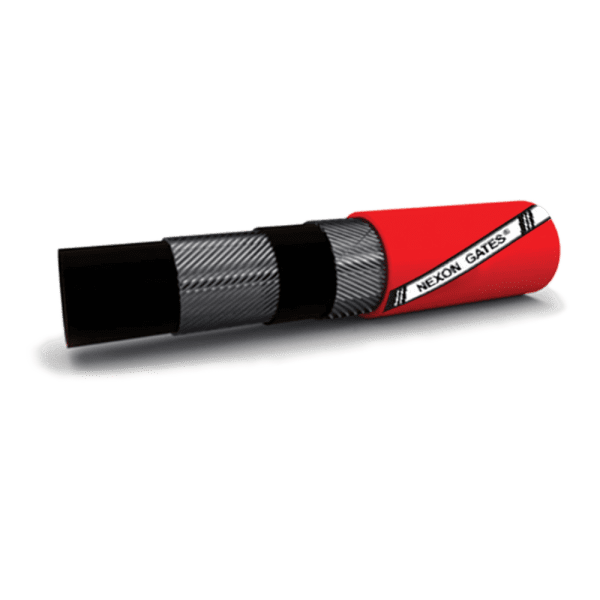

CONSTRUCTION
| PRODUCT CODE |  Inner Diameter |
 Outer Diameter |
 Working Pressure |
 Min Bend Radius |
Standard Pack Length | |||||
| inch | mm | mm | PSI | Bar | mm | meter | ||||
| NGSTEAM-II-232-8 | 1/2 | 13 | 25 | 255 | 17 | 120 | 60 | |||
| NGSTEAM-II-232-10 | 5/8 | 16 | 28 | 255 | 17 | 155 | 60 | |||
| NGSTEAM-II-232-12 | 3/4 | 19 | 32 | 255 | 17 | 185 | 60 | |||
| NGSTEAM-II-232-16 | 1 | 25 | 38 | 255 | 17 | 240 | 60 | |||
| NGSTEAM-II-232-20 | 1 1/4 | 32 | 46 | 255 | 17 | 330 | 60 | |||
| NGSTEAM-II-232-24 | 1 1/2 | 38 | 54 | 255 | 17 | 390 | 60 | |||
| NGSTEAM-II-232-32 | 2 | 51 | 67 | 255 | 17 | 520 | 60 | |||
| NGSTEAM-II-232-40 | 2 1/2 | 63 | 83 | 255 | 17 | 640 | 60 | |||
| NGSTEAM-II-232-48 | 3 | 76 | 96 | 255 | 17 | 745 | 60 | |||
| NGSTEAM-II-232-64 | 4 | 102 | 124 | 255 | 17 | 990 | 60 | |||
Designed to deliver high pressure saturated steam operation. Steam cleaning for tank, pipelines in petrochemical application. Oil resistant cover.
Tube: EPDM, black.
Reinforcement: High tensile steel wire.
Cover: Black. Synthetic rubber. Ozone, abrasion, environment resistant. Compounded for oil and high temperature environments.
Temperature: -40°Cto210°C(Peakat232°C)
Standard: ISO6134 TYPE Class B
Reinforcement: High tensile steel wire.
Cover: Black. Synthetic rubber. Ozone, abrasion, environment resistant. Compounded for oil and high temperature environments.
Temperature: -40°Cto210°C(Peakat232°C)
Standard: ISO6134 TYPE Class B
