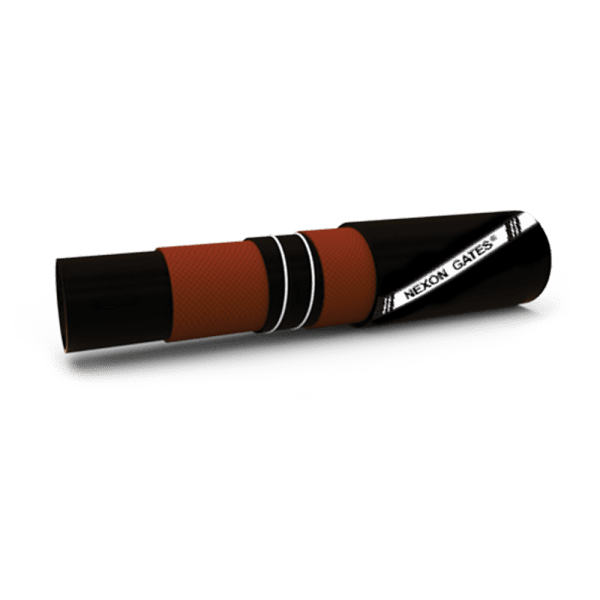

NGFUEL 600S

Description

SPECIFICATION

APPLICATION

CONSTRUCTION

PRODUCT CODE	Inner Diameter		Outer Diameter	Working Pressure		Min Bend Radius	Standard Pack Length
	inch	mm	mm	PSI	Bar	mm	meter
NGFUEL-600S-16	1	25	38	600	41	140	60
NGFUEL-600S-32	2	51	64	600	41	280	60
NGFUEL-600S-48	3	76	102	600	41	280	60
NGFUEL-600S-64	4	102	102	600	41	590	60
NGFUEL-600S-80	5	127	145	600	41	790	60
NGFUEL-600S-96	6	152	174	600	41	910	60

Heavy duty petroleum and oil suction and discharge hose. Aromatic content up to 50%

Tube: NBR, black, smooth.
Reinforcement: Two plies high tensile synthetic yarn. Helical wire for vacuum application.
Cover: Black, synthetic rubber, ozone, abrasion, weather resistant.
Temperature: -40°C to 80°C
Aromatic Content: 50%
