Description
SPECIFICATION
APPLICATION
CONSTRUCTION
| PRODUCT CODE |  Inner Diameter |
 Outer Diameter |
 Working Pressure |
 Min Bend Radius |
Standard Pack Length | |||||
| inch | mm | mm | PSI | Bar | mm | meter | ||||
| UHPW10K-6 | 3/8 | 9.5 | 16.5 | 10880 | 750 | 290 | 60 | |||
| UHPW18K-6 | 1/2 | 12.70 | 22.1 | 18000 | 1241 | 238 | 60 | |||
| UHPW10K-8 | 3/8 | 9.5 | 19.7 | 10880 | 750 | 228 | 60 | |||
| UHPW16K-8 | 1/2 | 12.7 | 26.3 | 16000 | 1100 | 245 | 60 | |||
| UHPW14K-12 | 3/4 | 15.9 | 33.9 | 14000 | 966 | 270 | 60 | |||
| UHPW12K-16 | 1 | 25.4 | 39.8 | 12000 | 828 | 280 | 60 | |||
For water blasting, design to clean industrial surface, water pressure up to 18,000PSI

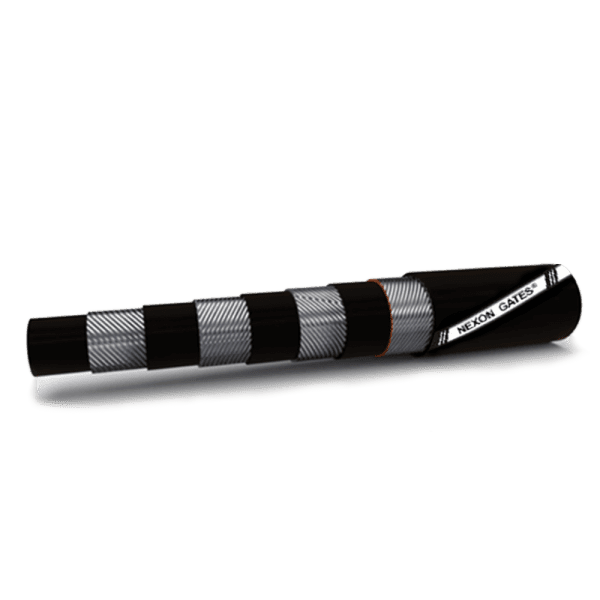

Tube: EPDM synthetic rubber
Reinforcement: Multiple layer high tensile spiral wire.
Cover: Black, synthetic rubber, oil, environment, abrasion resistant.
Temperature: -40°C to 80°C
Reinforcement: Multiple layer high tensile spiral wire.
Cover: Black, synthetic rubber, oil, environment, abrasion resistant.
Temperature: -40°C to 80°C
