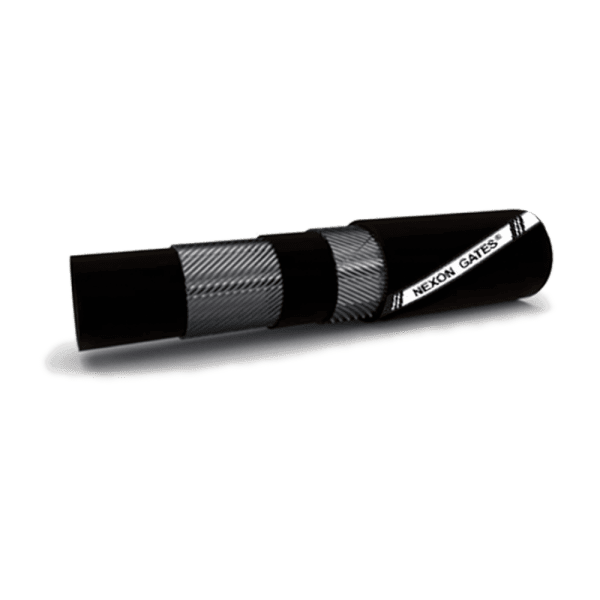

NGJET 2000

Description

SPECIFICATION

APPLICATION

CONSTRUCTION

PRODUCT CODE	Inner Diameter		Outer Diameter	Working Pressure		Min Bend Radius	Standard Pack Length
	inch	mm	mm	PSI	Bar	mm	meter
NGJET 2000-32	2	51	77	2000	140	900	60
NGJET 2000-40	2 1/2	64	91	2000	140	900	60
NGJET 2000-48	3	76	117	2000	140	1200	60
NGJET 2000-64	4	102	133	2000	140	1400	60
NGJET 2000-80	5	127	170	2000	140	1450	60
NGJET 2000-96	6	152	195	2000	140	1500	60

Aircraft ground refuelling operation. Aromatic content up to 50%

Tube: NBR, black, smooth. (Type B with antistatic rubber compound, Type C with conductive tube)
Reinforcement: Two ply high tensile synthetic yarn. Helical wire for vacuum application. Embedded antistatic wire under cover for grounding purpose.
Cover: Black, synthetic rubber, ozone, abrasion, weather. Fire and antistatic (R<106 Ohm/m) Temperature: -30°C to 80°C Aromatic Content: 50% Antistatic: Antistatic wire and antistatic cover (Type B with antistatic tube) (Type C with conductive tube) Specifications: EN1825 TYPE Band C
