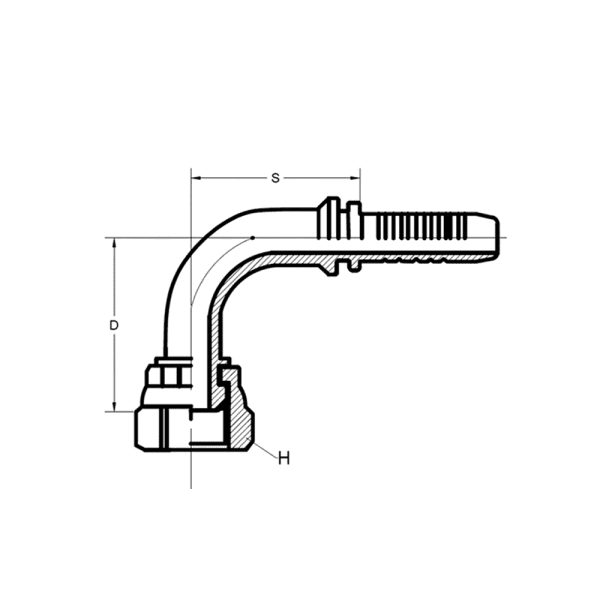

BSPP – FEMALE BRITISH STANDARD PIPE PARALLEL SWIVEL (90° SWEPT ELBOW)

BSPP – FEMALE BRITISH STANDARD PIPE PARALLEL SWIVEL (90° SWEPT ELBOW)

BSPP – FEMALE BRITISH STANDARD PIPE PARALLEL SWIVEL (90° SWEPT ELBOW)

NG BH-TYPE NON SKIVE FITTING – BRAIDED HOSE

Description

SPECIFICATION

APPLICATION

Part Label	Hose Size (mm)		Thread	S	H	D
	Inch	mm	Inch	mm	mm	mm
B4FBSPZ4-45	1/4	6.4	G1/4-19	35	19	15
B6FBSPZ6-45	3/8	9.5	G3/8-19	42	19	15
B8FBSPZ8-45	1/2	12.7	G1/2-14	50	27	17
B10FBSPZ10-45	5/8	15.9	G5/8-14	60	30	26
B12FBSPZ12-45	3/4	19.1	G3/4-14	68	32	29
B16FBSPZ16-45	1	25.4	G1-11	80	38	76
B20FBSPZ20-45	1 1/4	31.8	G1 1/4-11	90	50	85
B24FBSPZ24-90	1 1/2	38.1	G1 1/2-11	105	55	95
B32FBSPZ32-90	2	50.8	G2-11	135	70	135

HOSE TYPE:
UB1, UB2, UB1-HT, UB2-HT, UB19, UB17, UB16, UM4, UPW4000, UPW3000
Non Skive Insert
Ferrule UFB Series
